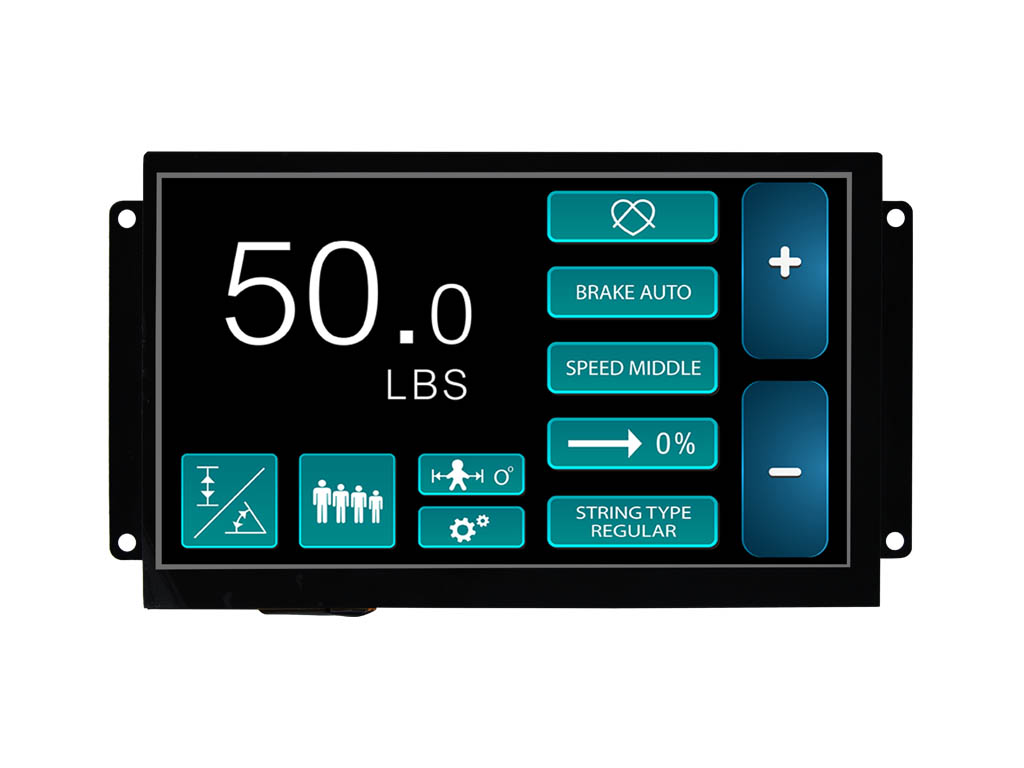

7" Wiseboard Display
7" Wiseboard Display
Model：OVF070HA0E805K128
Resolution: 800*480
Power supply: 5V
Interface: UART
View Direction: 12 o’clock
Touch Panel: CTP
Power supply: 5V
Interface: UART
View Direction: 12 o’clock
Touch Panel: CTP
Movie
Mechanical Data
Optima Opto offers several display solution as Smart Display. The display solution with MCU and without MCU or with featured MCU are the choices for different display needs.
ARM9 core. Frequency: 400MHz / GUI Editor for easy designed. / RTOS supports multithreading / Support SPI or USB update
Optional I/O: UART, RS485, RS232, I2C, SPI, GPIO, CAN
OVF070HA0E805K128 Wiseboard display solution
| Item | Dimension(m*m) |
| Module dimension | 182.2 x 101.2 |
| View area | 155.08 x 86.92 |
| Active area | 154.08 x 85.92 |
| Pixel size | 0.1926 x 0.1790 |

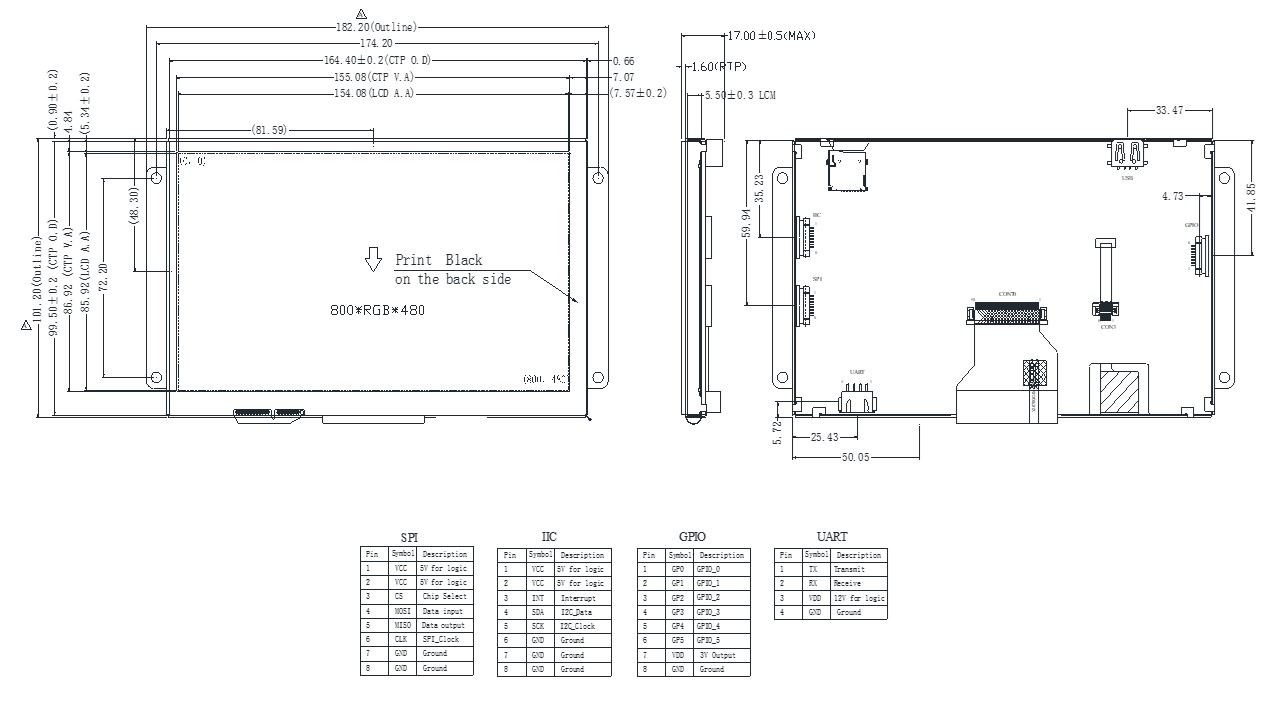

Drawing
